Description

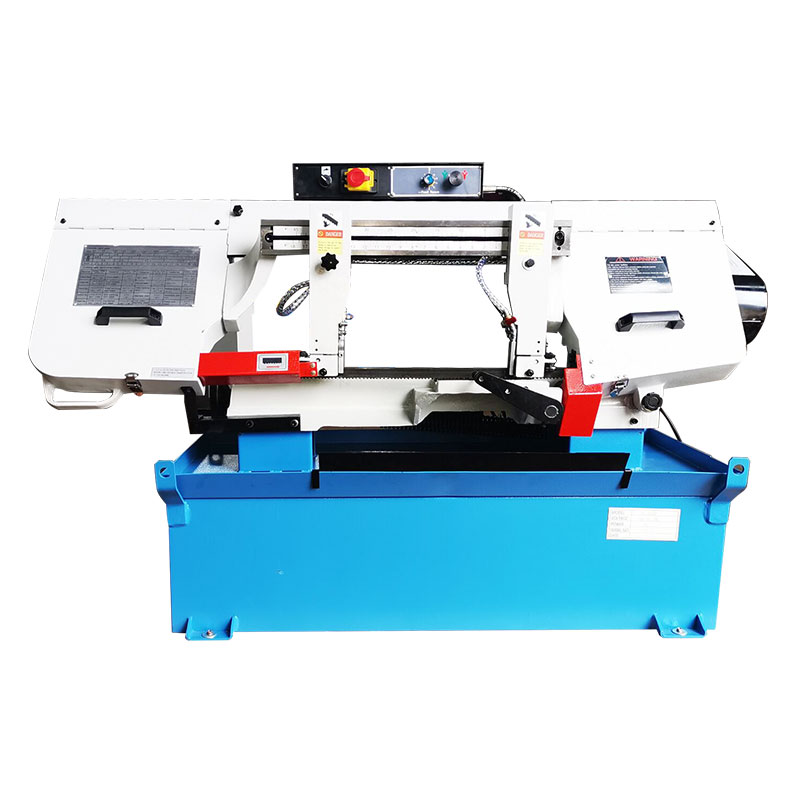

Metal band saw BS1018B suitable for field and construction site application.The saw bow can be swiveled from 0° to 45°.Vertical force controlled through hydraulic cylinder.
Specification
| Specification | BS1018B | |
| Capicity | Circular @90° | 254mm |
| Rectangular @90 ° | 127x457mm | |
| Circular @45° | 150mm | |
| Rectangular @45 ° | 150x190mm | |
| Blade speed | @ 60HZ | 35,60,88,115MPM |
| @ 50HZ | 29,50,73,95MPM | |
| Blade size | 27×0.9x3280mm | |
| Motor power | 1.5kw 2HP(3PH) | |
| Dirve | V-belt | |
| Packing size | 1830x830x1150mm | |
| N.W./G.W. | 310/385kg | |
Main Features
- Vertical force controlled through hydraulic cylinder
- Strong structure for big capacity cutting
Machine details
