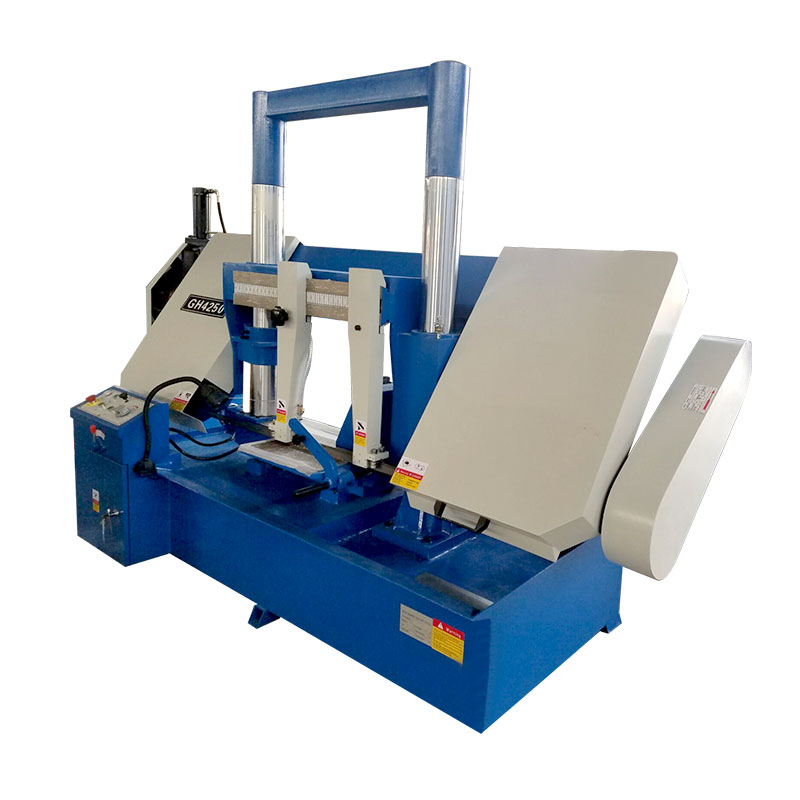

Horizontal band saw GH4250 for high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Specification
| Specification | GH4250 |
| Cutting range (round) | Φ500mm |
| Cutting range (rectangular) | 500X500mm |
| Blade size | 5800X41X1.3mm |
| Blade feed type | hydraulic stepless |
| Blade tension type | manual |
| Blade linear speed | 27/45/69m/min |
| Main drive structure | worm wheel |
| Workpiece clamp type | hydraulic |
| Workpiece feed type | manual |
| Main motor power | 5.5kw |
| Hydraulic motor power | 0.75kw |
| Coolant pump motor power | 0.09kw |
| Machine dimensions | 2800X1400X1900mm |
| N.W. | 1900kgs |
Main Features
- Solid steel saw frame within a dual-column frame guide
- Flat and low profile for easier handling of heavy or large workpiece
- Feed of the saw frame is infinitely variable via a hydraulic throttle valve adjustable saw blade guide ensures good cutting result at any workpiece diameter
- Hydraulic workpiece clamping included
Machine details
