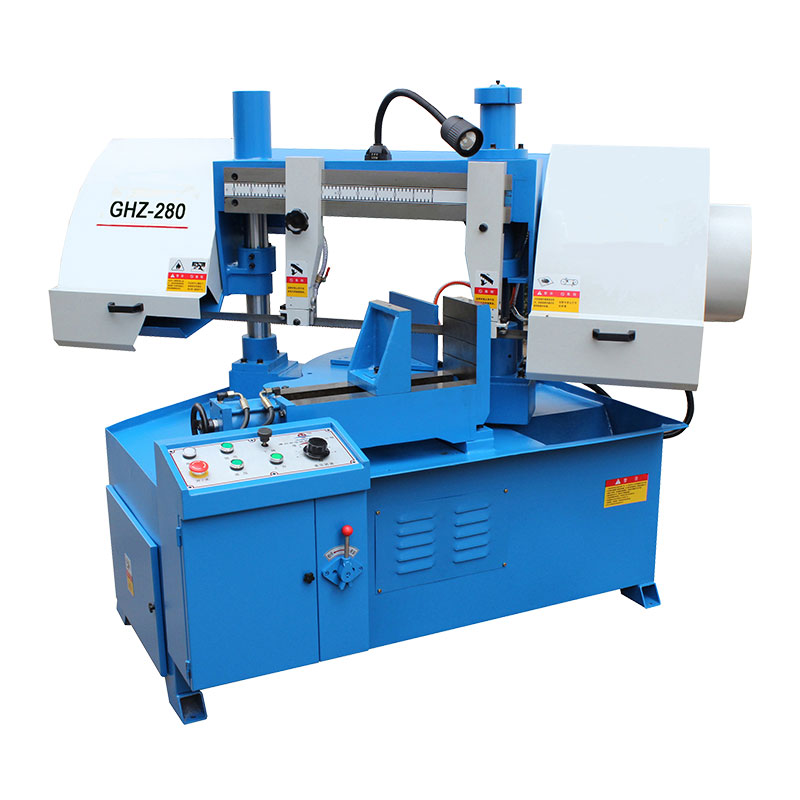

Double Column Band Saw Machine GHZ280 with extremely rigid dual-column cast-iron construction with heavy swivel console.
Specification
|
GHZ280
|
||
|
Main motor power
|
kw
|
2.2
|
|
Hydraulic motor power
|
kw
|
0.55
|
|
Coolant pump motor power
|
kw
|
0.04
|
|
Blade linear speed
|
m/min
|
27/45/69
|
|
Blade feed type
|
hydraulic stepless
|
|
|
Blade size
|
mm
|
3505*27*0.9
|
|
Machine dimensions (L*W*H)
|
mm
|
1900*1400*1500
|
|
Blade tension type
|
manual
|
|
|
Workpiece feed type
|
manual
|
|
|
Workpiece clamp type
|
hydraulic
|
|
|
N.W.
|
kg
|
700
|
|
Cutting range (round)
|
mm
|
Φ280
|
|
Cutting range (square)
|
mm
|
280*280
|
|
Cutting range (rectangular)
|
mm
|
320*280
|
|
Cutting range (round)
|
mm
|
Φ240
|
|
Cutting range (square)
|
mm
|
240*240
|
|
Cutting range (rectangular)
|
mm
|
280*240
|
Main Features
- Extremely rigid dual-column cast-iron construction with heavy swivel console
- Two cutting speeds – directly shifted via main drive motor
- Infinitely variable saw frame feed
- Horizontal saw frame swivels up to 45°
- At the end of each sawing cycle, the saw blade frame will automatically return to the home position
- Extra rigid, adjustable saw blade guide
- Including hydraulic workpiece clamping with clamping pressure control
