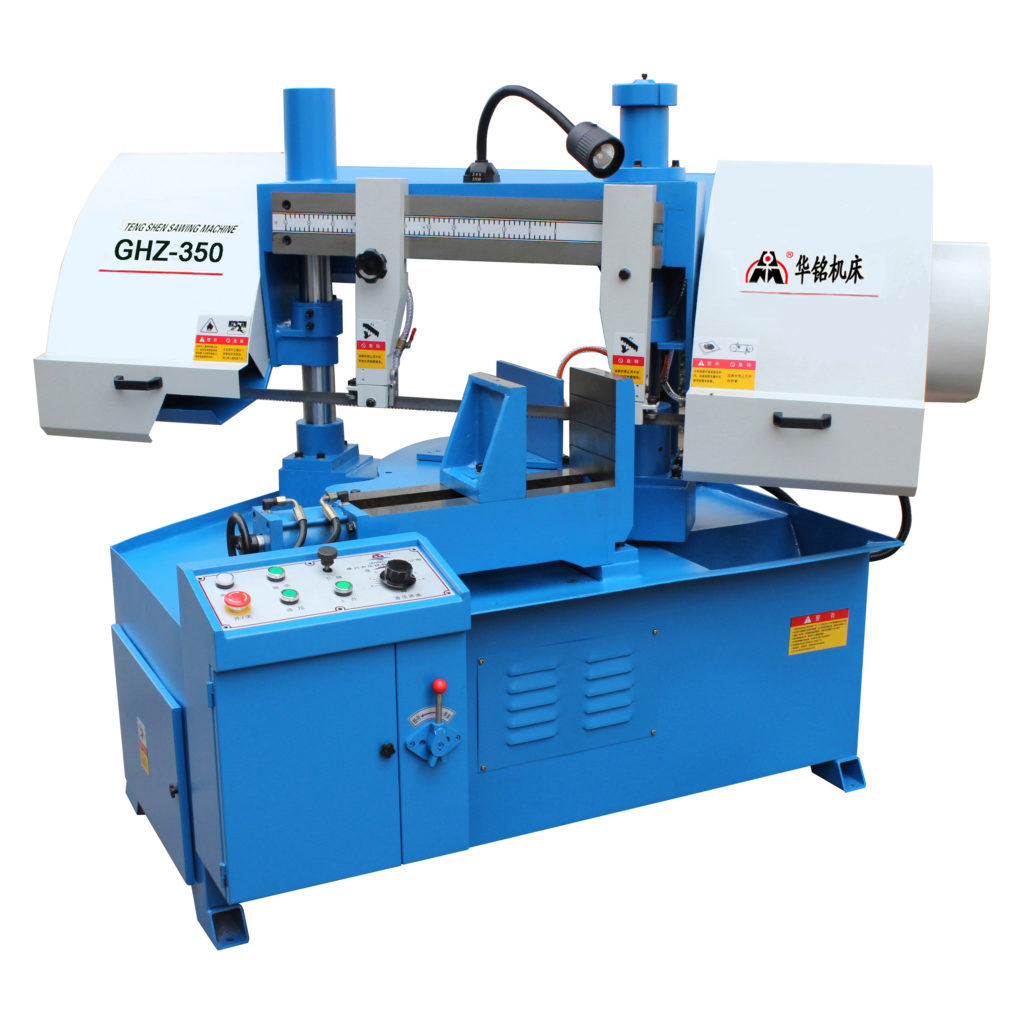

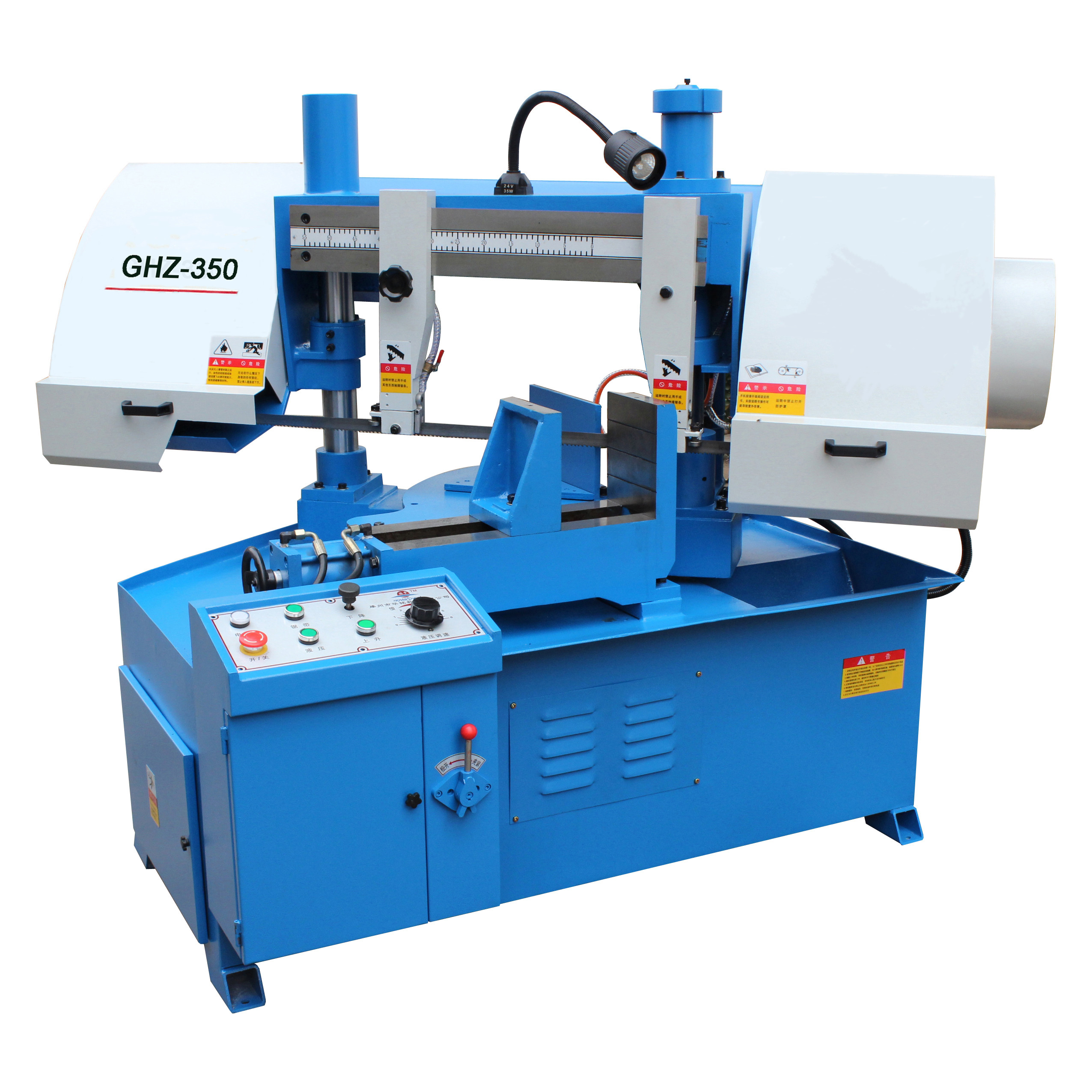

Double Column Band Saw Machine GHZ350 with extremely rigid dual-column cast -iron construction with heavy swivel console.
Specification
|
GHZ350
|
||
|
Main motor power
|
kw
|
3
|
|
Hydraulic motor power
|
kw
|
0.55
|
|
Coolant pump motor power
|
kw
|
0.04
|
|
Blade linear speed
|
m/min
|
27/45/69
|
|
Blade feed type
|
hydraulic stepless
|
|
|
Blade size
|
mm
|
4515*34*1.1
|
|
Machine dimensions (L*W*H)
|
mm
|
2100*1500*1600
|
|
Blade tension type
|
manual
|
|
|
Workpiece feed type
|
manual
|
|
|
Workpiece clamp type
|
hydraulic
|
|
|
N.W.
|
kg
|
850
|
|
Cutting range (round)
|
mm
|
Φ350
|
|
Cutting range (square)
|
mm
|
350*350
|
|
Cutting range (rectangular)
|
mm
|
380*350
|
|
Cutting range (round)
|
mm
|
Φ300
|
|
Cutting range (square)
|
mm
|
300*300
|
|
Cutting range (rectangular)
|
mm
|
350*300
|
Main Features
- Two cutting speeds – directly shifted via main drive motor
- Infinitely variable saw frame feed
- Horizontal saw frame swivels up to 45°
- At the end of each sawing cycle, the saw blade frame will automatically return to the home position
- Extra rigid, adjustable saw blade guide
- Including hydraulic workpiece clamping with clamping pressure control
