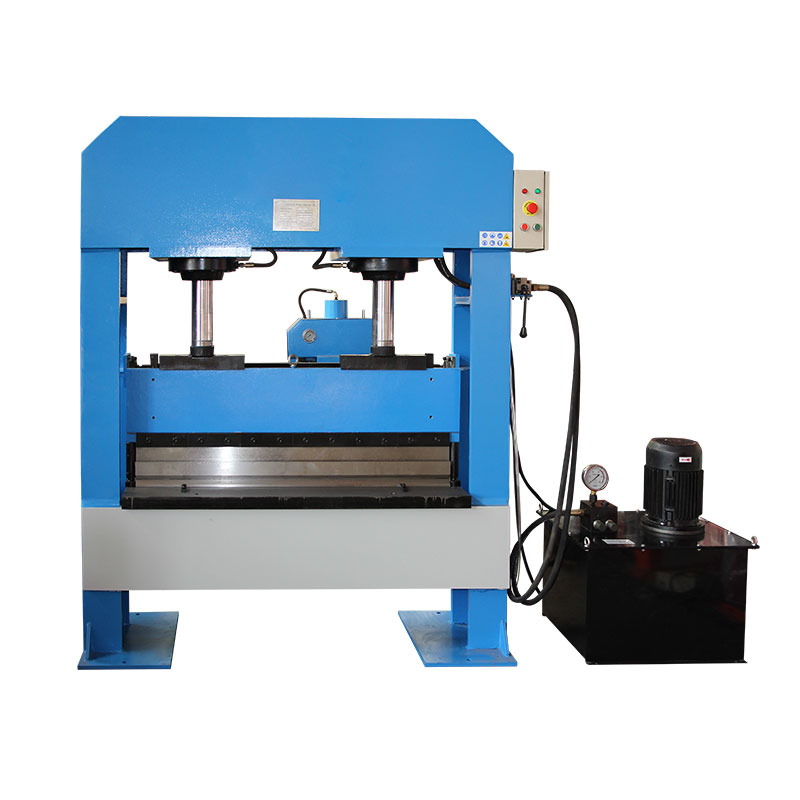

HPB-100 hydraulic press with double cylinder. Widely used for assembling-disassembling, straightening, forming, punching, pressing the parts in electromechanical line, also used for assembling-disassembling countershaft and semi-shaft in automobile repairing a line, and used for shoveling, punching, riveting the eight-wheel, and is the necessary press machinery in other lines.
Specification
| Model | HPB-100 (double cylinder) |
| Capacity | 1000kn |
| Pressure | 30mpa |
| Travel | 300+405mm |
| Table size | 420x1300mm |
| Dimension | 2100x750x2250mm+630x730x960mm |
| Weight | 2100kgs |
Main Features
- High efficiency, low-noise.
- Foot pedal control.
- Well hydraulic control.
- Excellent quality.
- V-bloc.
- Can add press brake mould for bend plate.
- Table can be lifted through a chain driven by the main cylinder.
Machine details
