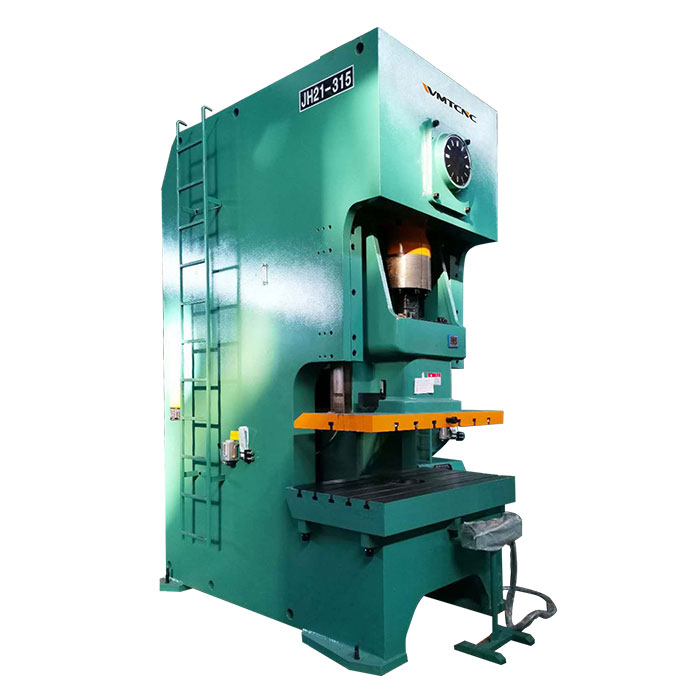

This series of press adopts rotating key positive clutch,which has a simple structure and is convenient to operate and maintain,achieving smooth operation, low impact and low noise.
Specification
| Specifications | Unit | JH21-315 | ||
| Type | H | S | ||
| Nominal force | KN | 3150 | ||
| Nominal Stroke | mm | 7 | 7 | |
| Slide Stroke | mm | 160 | 220 | |
| Slide Strokes Per Minute | Fixed | min-1 | 45 | 30 |
| Variable | 30-55 | 20-35 | ||
| Maximum Die Set Height | mm | 530 | 500 | |
| Die Height Adjustment | mm | 120 | ||
| Between slide center and frame | mm | 450 | ||
| Columns Distance | mm | 980 | ||
| Bottom size of slide | L×R | mm | 950 | |
| F×B | mm | 700 | ||
| Shank Hole Size | Dia | mm | 70 | |
| Depth | mm | 130 | ||
| Bolster size | L×R | mm | 1540 | |
| F×B | mm | 880 | ||
| Blanking Hole Diameter | mm | 240 | ||
| Bolster Thickness | mm | 190 | ||
| Bolster Surface Height | mm | 1000 | ||
| Overall Dimensions | F×B | mm | 2720 | |
| L×R | mm | 1680 | ||
| H | mm | 3850 | ||
| Distance Between Foundation Bolts | F×B | mm | 2140 | |
| L×R | mm | 1500 | ||
| Motor | Power | Kw | 30 | |
| Weight（Approximate) | Kg | 26600 | ||
Main Features
-
The whole machine has adopted imported PLC centralized control, and imported safety double valve control is applied to the gas circuit, to realize inch, single and continuous punching.
-
The key parts such as slider, guide rail, worktable plate, connecting rod, and flywheel are all cast with resin sand. Compared with common clay sand casting. the surface roughness and dimensional accuracy are improved effectively.
-
Electrical control is applied to filling height for JH21 products of 60 tons or above.
High-quality configuration and all the key components and parts such as pneumatic components, electrical apparatus elements, sealing elements, and buttons are imported.
