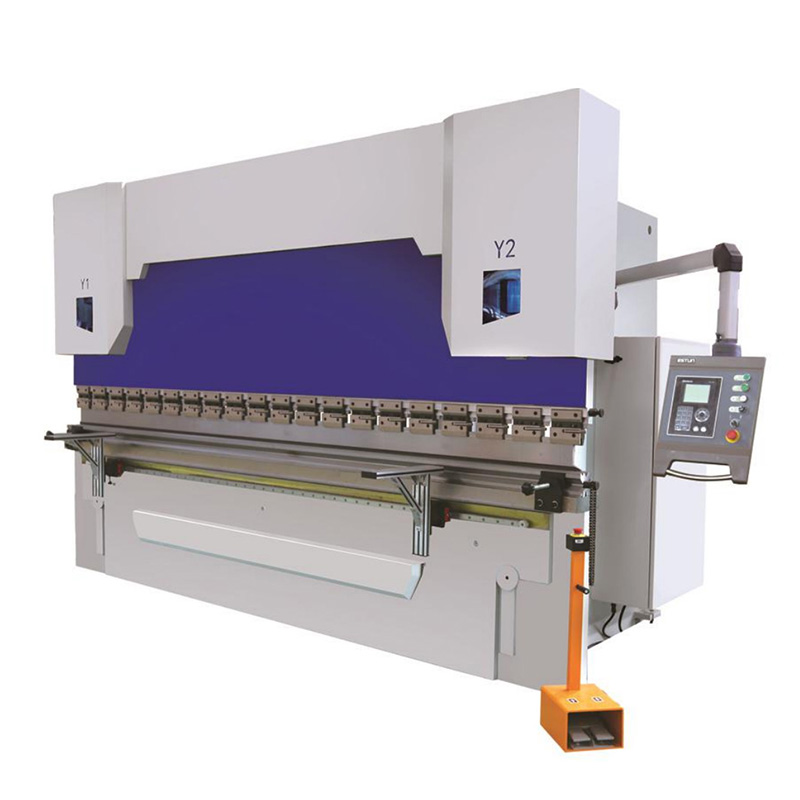

- WC67K-100/4000 equipped with Delem (can also be equipped with Swiss Cybelec), or Estun company dedicated CNC systems.
- The servo motors are imported, the slider stroke( Y ), back gauge(X, R, Z ), and main pressure are all controlled by the computer.
- The back gauge adopts all screw and linear guides, the repeat positioning accuracy is high.
Specification
| Specification | Nominal Pressure(kN) |
Length of working table (mm) |
Distance between upngnts(mm) | Throat depth(mm) |
Ram stroke(mm) |
Motor power(kW) |
| WC67Y/K-40/2000 | 400 | 2000 | 1800 | 250 | 100 | 4 |
| WC67Y/K-40/2200 | 400 | 2200 | 1800 | 250 | 100 | 4 |
| WC67Y/K-40/2500 | 400 | 2500 | 2000 | 250 | 100 | 4 |
| WC67Y/K-50/2500 | 500 | 2500 | 1900 | 250 | 100 | 4 |
| WC67Y/K-50/3200 | 500 | 3200 | 2600 | 250 | 100 | 4 |
| WC67Y/K-63/2500 | 630 | 2500 | 2020 | 250 | 120 | 5.5 |
| WC67Y/K-63/3200 | 630 | 3200 | 2600 | 250 | 120 | 5.5 |
| WC67Y/K-80/3200 | 800 | 3200 | 2600 | 250 | 120 | 5.5 |
| WC67Y/K-80/4000 | 800 | 4000 | 3200 | 250 | 120 | 5.5 |
| WC67Y/K-100/2500 | 1000 | 2500 | 2000 | 320 | 120 | 7.5 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2600 | 320 | 120 | 7.5 |
| WC67Y/K-100/4000 | 1000 | 4000 | 3200 | 320 | 120 | 7.5 |
| WC67Y/K-100/5000 | 1000 | 5000 | 4000 | 320 | 120 | 7.5 |
| WC67Y/K-125/2500 | 1250 | 2500 | 2000 | 320 | 120 | 7.5 |
| WC67Y/K-125/3200 | 1250 | 3200 | 2600 | 320 | 120 | 7.5 |
| WC67Y/K-125/4000 | 1250 | 4000 | 3200 | 320 | 120 | 7.5 |
| WC67Y/K-125/5000 | 1250 | 5000 | 4000 | 320 | 120 | 7.5 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2600 | 320 | 200 | 11 |
| WC67Y/K-160/4000 | 1600 | 4000 | 3200 | 320 | 200 | 11 |
| WC67Y/K-160/5000 | 1600 | 5000 | 4000 | 320 | 200 | 15 |
| WC67Y/K-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 15 |
