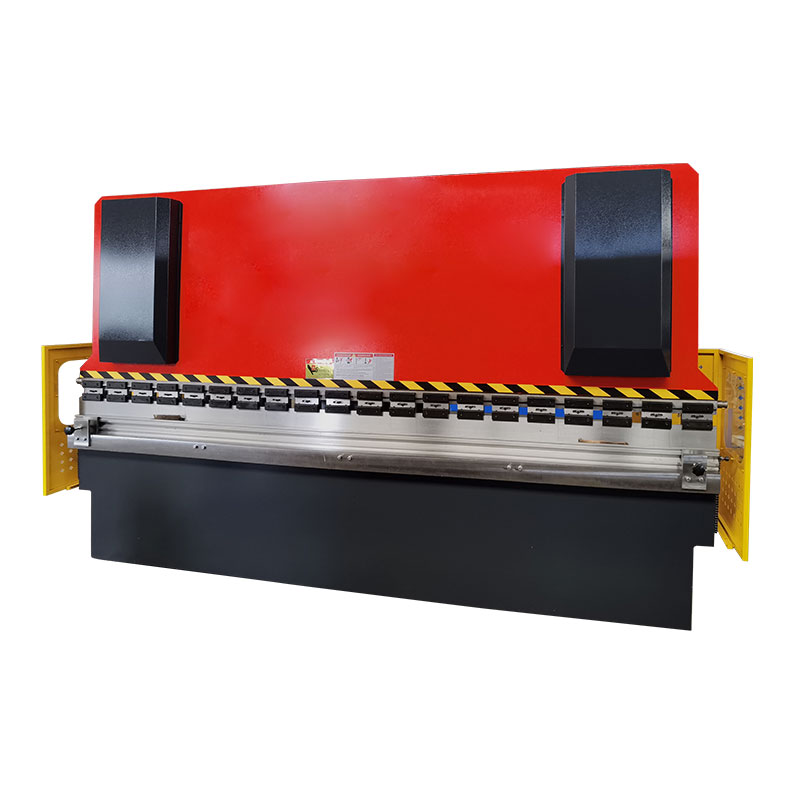

WMTCNC WC67Y press brake consists of a support stand, working table, synchronous mechanism, and sheet metal stop system. It is a kind of conventional hydraulic press brake machine. It is able to bend sheet metal with Max. length 3200mm, another special size is available according to actual needs.
Welded steel plate of the whole machine to ensure rigidity of press brakes, vibration is adopted to remove inner stress. We have good equipment to machine parts of hydraulic press brake to make sure good accuracy of components, to realize good precision of bending works.
Specification
| Specification | unit | 125/2500 | 125/3200 | 125/4000 | 160/2500 |
| Nominal pressure | kN | 1250 | 1250 | 1250 | 1600 |
| Length of table | mm | 2500 | 3200 | 4000 | 2500 |
| Distance between uprights | mm | 2050 | 2600 | 3200 | 2050 |
| Throat depth | mm | 320 | 320 | 320 | 320 |
| Ram stroke | mm | 150 | 150 | 150 | 200 |
| Max. open height between ram and table | mm | 415 | 415 | 415 | 470 |
| Adjustment of Ram stroke | mm | 120 | 120 | 120 | 160 |
| Approach speed | mm/s | 110 | 110 | 110 | 100 |
| Bend speed | mm/s | 10 | 10 | 10 | 9.5 |
| Return speed | mm/s | 100 | 100 | 100 | 95 |
| Main motor | kW | 11 | 11 | 11 | 11 |
| Overall dimension ( LxWxH ) | mm | 2650 | 3350 | 4150 | 2560 |
| 1785 | 1785 | 1785 | 1940 | ||
| 2540 | 2560 | 2610 | 2660 | ||
| Weight | kg | 6600 | 7300 | 8800 | 9000 |
Main Features
- Hydraulic press brake all Steel Welded, Vibration eliminate stress, high mechanical intensity, good rigidity. Hydraulic upper transmission, steady and reliable.
- Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
- Ensure the high control precision, bending accuracy and repositioning accuracy are also reach to the high level. hydraulic press brake back gauge can be multi-axes controlled.
- Back gauge distance, upper ram stroke can be adjusted by motor-drive, manual operation micro-adjust equipment, numerical display.
- Our hydraulic press brake machine worktable full deflection compensation
- Adopt an integrated hydraulic system, more reliable and easy for maintenance.
- Travel limit protection, full hydraulic press brake machine guarding with safety interlocker.
- Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpiece’s precision.
- Inch, single-mode being designed for the hydraulic press brake machine and reversing and maintain time can be controlled by the time relays
- Safe fence and the electric interlocker have been designed for the hydraulic press brake machine to ensure the operation safety.
- Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
- Control system for hydraulic press brake: Estun NC E21, CNC DELEM DA41, DA52, DA66T,etc.
Machine details
