Description

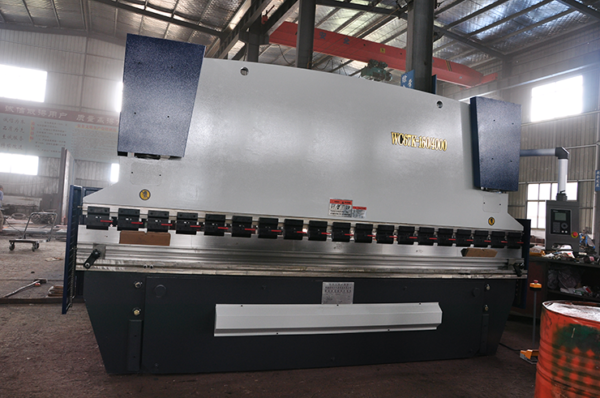

WMTCNC Hydraulic Press Brake Machine WC67Y-125X4000 consists of a support stand, working table, synchronous mechanism, and sheet metal stop system. It is a kind of conventional hydraulic press brake machine. It is able to bend sheet metal with Max. length 4000mm, another special size is available according to actual needs.
Welded steel plate of the whole machine to ensure rigidity of press brakes, vibration is adopted to remove inner stress. We have good equipment to machine parts of hydraulic press brake to make sure good accuracy of components, to realize good precision of bending works.
Specification
Specification | Nominal Pressure | Length of working table | Throat dephts | Ram Stock | Number of stroke | Motor Power |
KN | mm | mm | mm | m/min-1 | KW | |
WC67Y/K-40/2200 | 400 | 2200 | 200 | 100 | 11 | 4 |
WC67Y/K-40/2500 | 400 | 2500 | 200 | 100 | 11 | 4 |
WC67Y/K-50/2500 | 500 | 2500 | 200 | 100 | 11 | 5.5 |
WC67Y/K-63/2500 | 630 | 2500 | 250 | 100 | 10 | 5.5 |
WC67Y/K-63/3200 | 630 | 3200 | 250 | 100 | 10 | 7.5 |
WC67Y/K-80/2500 | 800 | 2500 | 320 | 150 | 8 | 7.5 |
WC67Y/K-80/3200 | 800 | 3200 | 320 | 150 | 8 | 7.5 |
WC67Y/K-100/2500 | 1000 | 2500 | 320 | 150 | 8 | 7.5 |
WC67Y/K-100/3200 | 1000 | 3200 | 320 | 150 | 8 | 7.5 |
WC67Y/K-100/4000 | 1000 | 4000 | 400 | 150 | 8 | 7.5 |
WC67Y/K-125/2500 | 1250 | 2500 | 320 | 150 | 8 | 7.5 |
WC67Y/K-125/3200 | 1250 | 3200 | 320 | 150 | 8 | 7.5 |
WC67Y/K-125/4000 | 1250 | 4000 | 400 | 150 | 8 | 7.5 |
WC67Y/K-160/3200 | 1600 | 3200 | 400 | 180 | 8 | 11 |
WC67Y/K-160/4000 | 1600 | 4000 | 400 | 180 | 8 | 11 |
WC67Y/K-160/5000 | 1600 | 5000 | 400 | 180 | 7 | 11 |
WC67Y/K-160/6000 | 1600 | 6000 | 400 | 200 | 7 | 15 |
Main Features
- Totally European design, streamlined looking, Monoblock, Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
- PRESS BRAKE is Equipped with the Estun user-friendly interface, the E21 provides all main press brake functionality.
- Automatic tonnage and stroke adjustment for bending angles.
- Perfect bending results with easy angle input and operation of machine.
