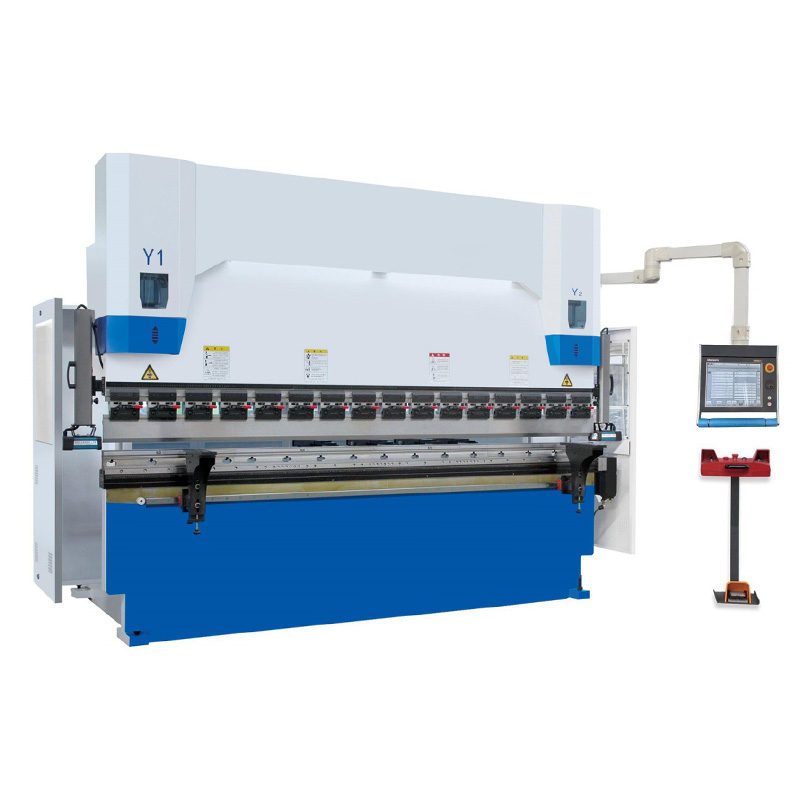

WE67K CNC Press Brake has two hydraulic cylinders with an electro-hydraulic servo valve. Deflection can be compensated by a hydraulic vaulted back-off system. The back gauge mechanism can control several back gauge axes. Its frame is welded with a steel plate and is treated with annealing. Hydraulic system adopts integrated control system and imported ring seals. It has a beautiful and simple contour.CNC system uses DA53T/DA58T/DA66T system with Chinese menu made in delem company of Holland. It can also be equipped with a mold fixture according to the customer s requirements.
Specification
| Specification | Nominal Pressure(kN) |
Length of working table (mm) |
Distance between upngnts(mm) | Throat depth(mm) |
Ram stroke(mm) |
Motor power(kW) |
| WE67K-40/2000 | 400 | 2000 | 1800 | 250 | 100 | 4 |
| WE67K-40/2200 | 400 | 2200 | 1800 | 250 | 100 | 4 |
| WE67K-40/2500 | 400 | 2500 | 2000 | 250 | 100 | 4 |
| WE67K-50/2500 | 500 | 2500 | 1900 | 250 | 100 | 4 |
| WE67K-50/3200 | 500 | 3200 | 2600 | 250 | 100 | 4 |
| WE67K-63/2500 | 630 | 2500 | 2020 | 250 | 120 | 5.5 |
| WE67K-63/3200 | 630 | 3200 | 2600 | 250 | 120 | 5.5 |
| WE67K-80/3200 | 800 | 3200 | 2600 | 250 | 120 | 5.5 |
| WE67K-80/4000 | 800 | 4000 | 3200 | 250 | 120 | 5.5 |
| WE67K-100/2500 | 1000 | 2500 | 2000 | 320 | 120 | 7.5 |
| WE67K-100/3200 | 1000 | 3200 | 2600 | 320 | 120 | 7.5 |
| WE67K-100/4000 | 1000 | 4000 | 3200 | 320 | 120 | 7.5 |
| WE67K-100/5000 | 1000 | 5000 | 4000 | 320 | 120 | 7.5 |
| WE67K-125/2500 | 1250 | 2500 | 2000 | 320 | 120 | 7.5 |
| WE67K-125/3200 | 1250 | 3200 | 2600 | 320 | 120 | 7.5 |
| WE67K-125/4000 | 1250 | 4000 | 3200 | 320 | 120 | 7.5 |
| WE67K-125/5000 | 1250 | 5000 | 4000 | 320 | 120 | 7.5 |
| WE67K-160/3200 | 1600 | 3200 | 2600 | 320 | 200 | 11 |
| WE67K-160/4000 | 1600 | 4000 | 3200 | 320 | 200 | 11 |
| WE67K-160/5000 | 1600 | 5000 | 4000 | 320 | 200 | 15 |
| WE67K-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 15 |
Optional CNC System
Delem DA-58T
Delem DA-53T
Delem DA-52S
