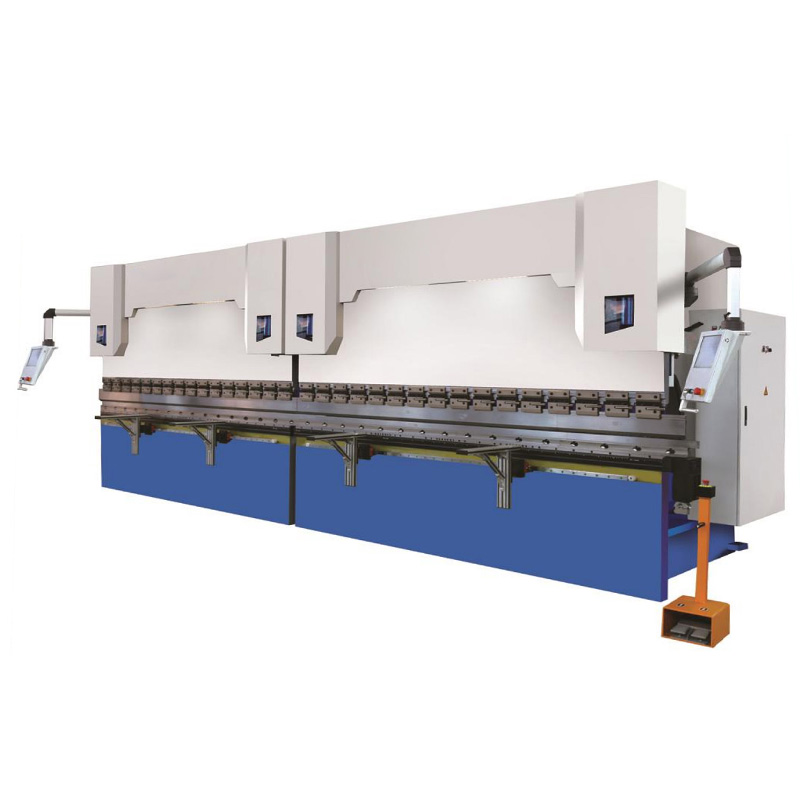

- WE67K2-400/4000 tandem press brake uses two or more oil cylinders Providing duplex linked or multiple synchronous device.
- A tandem press brake produces an unusually long workpiece.
- Especially suitable for city building, expressway lamp poles, automobile beams, and so on. T
- andem press brake can be used alone, in order to raise production efficiency.
- We can design and produce for special orders.
Specification
| Specification | Nominal Pressure(kN) |
Length of working table (mm) |
Distance between upngnts(mm) | Throat depth(mm) |
Slide stroke(mm) |
Motor power(kW) |
| WE67K2-320/5000 | 2X3200 | 2X5000 | 4000 | 400 | 250 | 2X22 |
| WE67K2-320/6000 | 2X3200 | 2X6000 | 4800 | 400 | 250 | 2X30 |
| WE67K2-400/4000 | 2X4000 | 2X4000 | 3100 | 400 | 320 | 2X37 |
| WE67K2-400/5000 | 2X4000 | 2×5000 | 4210 | 400 | 320 | 2X37 |
| WE67K2-500/4000 | 2X5000 | 2X4000 | 3100 | 400 | 320 | 2X37 |
| WE67K2-500/5000 | 2X5000 | 2X5000 | 4100 | 400 | 320 | 2X37 |
| WE67K2-500/6000 | 2X5000 | 2X6000 | 5100 | 400 | 320 | 2X37 |
| WE67K2-630/5000 | 2X6300 | 2X5000 | 4100 | 400 | 320 | 2X45 |
| WE67K2-630/6000 | 2X6300 | 2X6000 | 5100 | 400 | 320 | 2X45 |
| WE67K2-800/8000 | 2X8000 | 2X8000 | 6700 | 400 | 400 | 2X55 |
