This series Heavy Duty Single-column Hydraulic Press Machine adopts computer optimized structure design and 3-beam&4-column compact structure,which is simple, economic and practical,ensuring high safety,reliability and flexibility. This hydraulic press machine is suitable for all deep drawing process.
Specification
| Specification | Unit | Y41-6.3 | Y41-10 | Y41-25 | Y41-100 |
| Rated pressure | KN | 63 | 100 | 250 | 1000 |
| Max. hydraulic pressure | MPa | 8 | 12.5 | 20 | 25 |
| Stroke of slide | mm | 250 | 250 | 400 | 600 |
| Daylight | mm | 400 | 400 | 630 | 800 |
| Throat depth | mm | 200 | 200 | 350 | 400 |
| Table height above floor | mm | 700 | 700 | 710 | 800 |
| Dimensions of dropping hole | mm | 100 | 100 | 100 | 100 |
| Motor power | kw | 3 | 3 | 5.5 | 7.5 |
Main Features
-
Good performance.
-
High efficiency and low cost.
-
Excellent hydraulic system.
-
simple operation and repair.

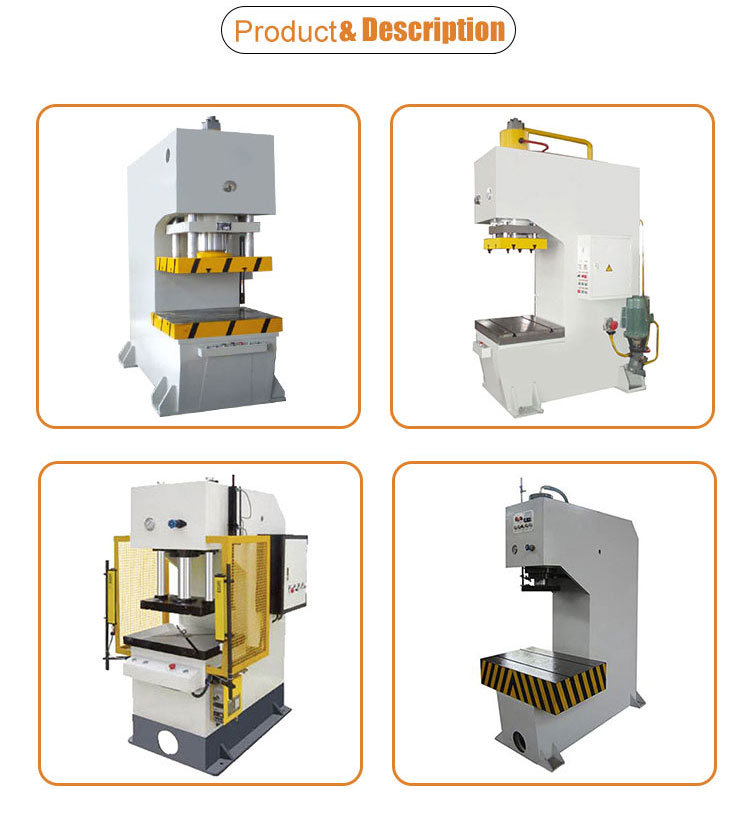

Machine details
